In the field of film and television lighting, networking represents the trend in the development of lighting control systems. This device is plug-and-play and complies with the international DMX512 (ANSI E1.11) lighting control protocol as well as the TCP/IP standards; it allows DMX512 control signals to be easily transmitted over Ethernet, enabling long-distance transmission, amplification, and real-time monitoring of DMX/RDM signals.
Technical performance:
Thanks to its simple and user-friendly interface, it allows for the setting of IP addresses and control parameters, among other things. It features both software-based and hardware-based watchdog mechanisms to ensure long-term stable operation.
It supports the SQD visual monitoring system; in combination with the SQD visual lighting operation and maintenance platform, it enables functions such as automatic device detection, automatic creation of network topology diagrams, device management and configuration, as well as fault management.
It is possible to remotely check the status of each input/output DMX port.
Multi-functional: it has the functions of an amplifier, a switcher, and a mixer.
Color LCD display with menus in both Chinese and English
Colorful LED indicators show the status of each DMX port.
The device allows users to freely select any two DMX ports to form a closed-loop backup link, with the primary and backup ports providing real-time mutual backup.
It supports connecting the DMX port of the local device to the DMX ports of other distributors, thereby creating a closed-loop backup link in which the primary and backup ports serve as backups for each other in real time.
Supports standard TCP/IP, Art-Net, sACN, SQD-Net, DMX512, and RDM protocols.
Features DMX port fault diagnosis: detection of signal loss, output short circuits, and conflict errors.
It features real-time monitoring and alerting for DMX512 ports; in the event of a short circuit, it automatically protects the security of the DMX network distributor ports, and the indicator light corresponding to that port turns red and flashes as a warning. The SQD visual lighting management platform also allows for real-time monitoring.
It features a built-in work log management system; all operation records can be viewed at any time on the SQD visual lighting maintenance platform and exported with just one click, ensuring that system maintenance is carried out in an organized and traceable manner.
Optional POE power supply function

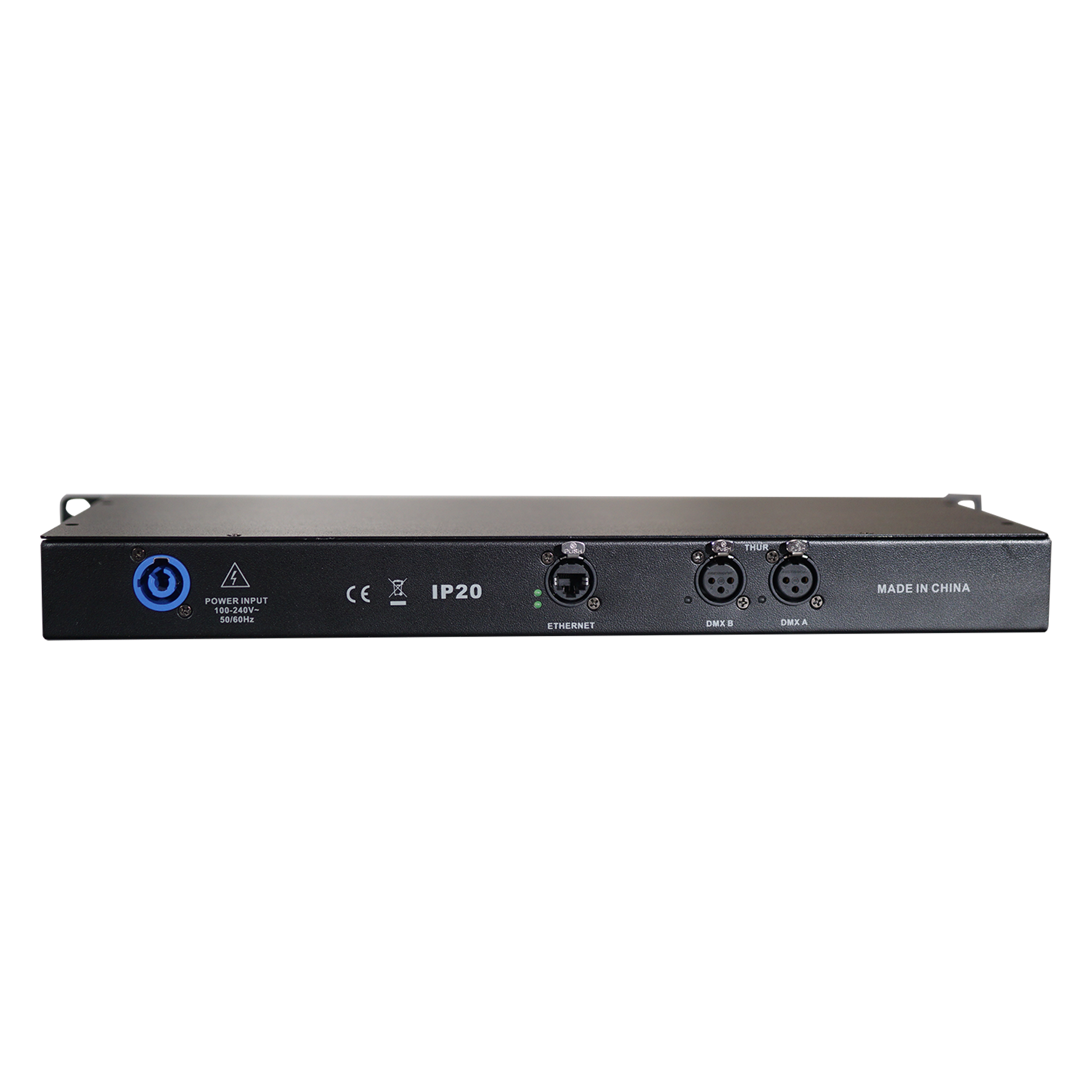

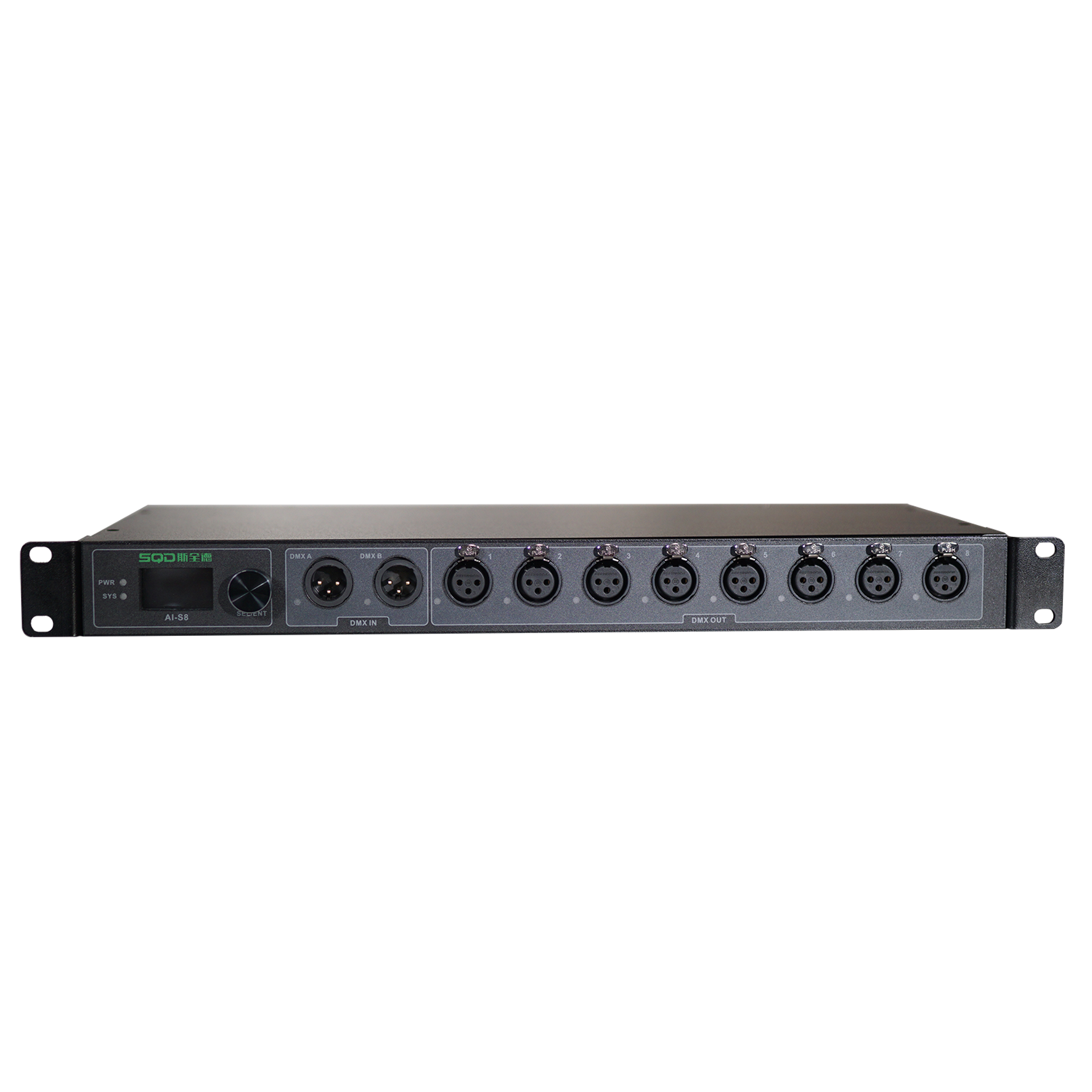

1 RJ45 network interface, 2 DMX inputs, 4 or 8 output interfaces; both input and output ports utilize optoelectronic isolation technology, and each DMX512 port can withstand a voltage of 2500V.
Installation method: 19-inch rack-mounted
Protection rating: IP20
