In the field of theater and film lighting, networking has become the key trend in lighting control. This device is plug-and-play and complies fully with international standards such as the Art-Net and sACN lighting protocols as well as TCP/IP network specifications; it enables fast two-way conversion between Ethernet signals and DMX signals, providing a stable and reliable solution for professional lighting control systems.
Technical performance:
Thanks to its simple and user-friendly interface, it allows for the setting of IP addresses and control parameters, among other things. It features both software-based and hardware-based watchdog mechanisms to ensure long-term stable operation.
The system is highly secure and reliable; it supports remote control and management. The DMX512 signal output is of version 1990, and it features the capability to convert and transmit signals between Ethernet and DMX formats.
It features 2 RJ45 network interfaces, allowing two switches to be connected simultaneously for seamless primary/backup operation, thereby enhancing the safety and reliability of the device’s performance.
It supports the SQD visual monitoring system; in combination with the SQD visual lighting operation and maintenance platform, it enables functions such as automatic device detection, automatic creation of network topology diagrams, device management and configuration, as well as fault management.
Supports remote setting of parameters such as Universe.
Supports remote, real-time monitoring of device operation and port status.
The device allows users to freely select any two DMX ports to form a closed-loop backup link, with the primary and backup ports providing real-time mutual backup.
It supports connecting the DMX port of the local device to the DMX ports of other converters, thereby creating a closed-loop backup link in which the primary and backup ports serve as backups for each other in real time.
Supports standard TCP/IP, Art-Net, sACN, SQD-Net, DMX512, and RDM protocols.
Supports dynamic or static IP address allocation via DHCP.
Features DMX port fault diagnosis: detection of signal loss, output short circuits, and conflict errors.
It features real-time monitoring and alerting for DMX512 ports; in the event of a short circuit at one of these ports, the converter’s port is automatically protected to ensure its safety. The indicator light corresponding to that port turns red and flashes as a warning, and the SQD visual lighting management platform allows for real-time monitoring as well.
It features a built-in work log management system; all operation records can be viewed at any time on the SQD visual lighting maintenance platform and exported with just one click, ensuring that system maintenance is carried out in an orderly and traceable manner.
Manual IP address setting, web page settings
Optional POE power supply function
Colorful LED indicators show the status of each DMX port.
A color LCD display with menus shown in both Chinese and English.
SN1024: 2 RJ45 network interfaces, 2 DMX input/output bidirectional interfaces
SN2048: 2 RJ45 network interfaces, 4 DMX input/output bidirectional interfaces

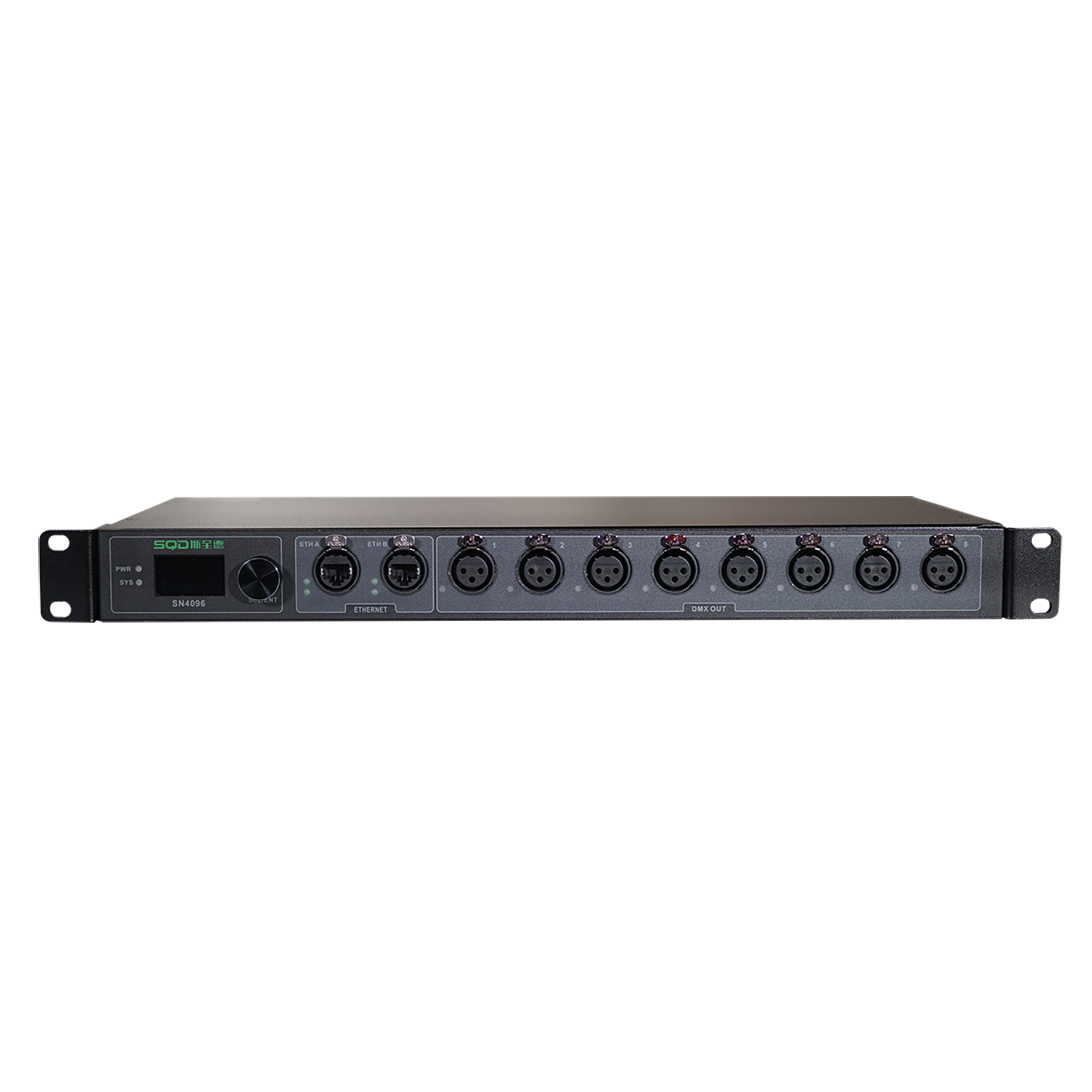

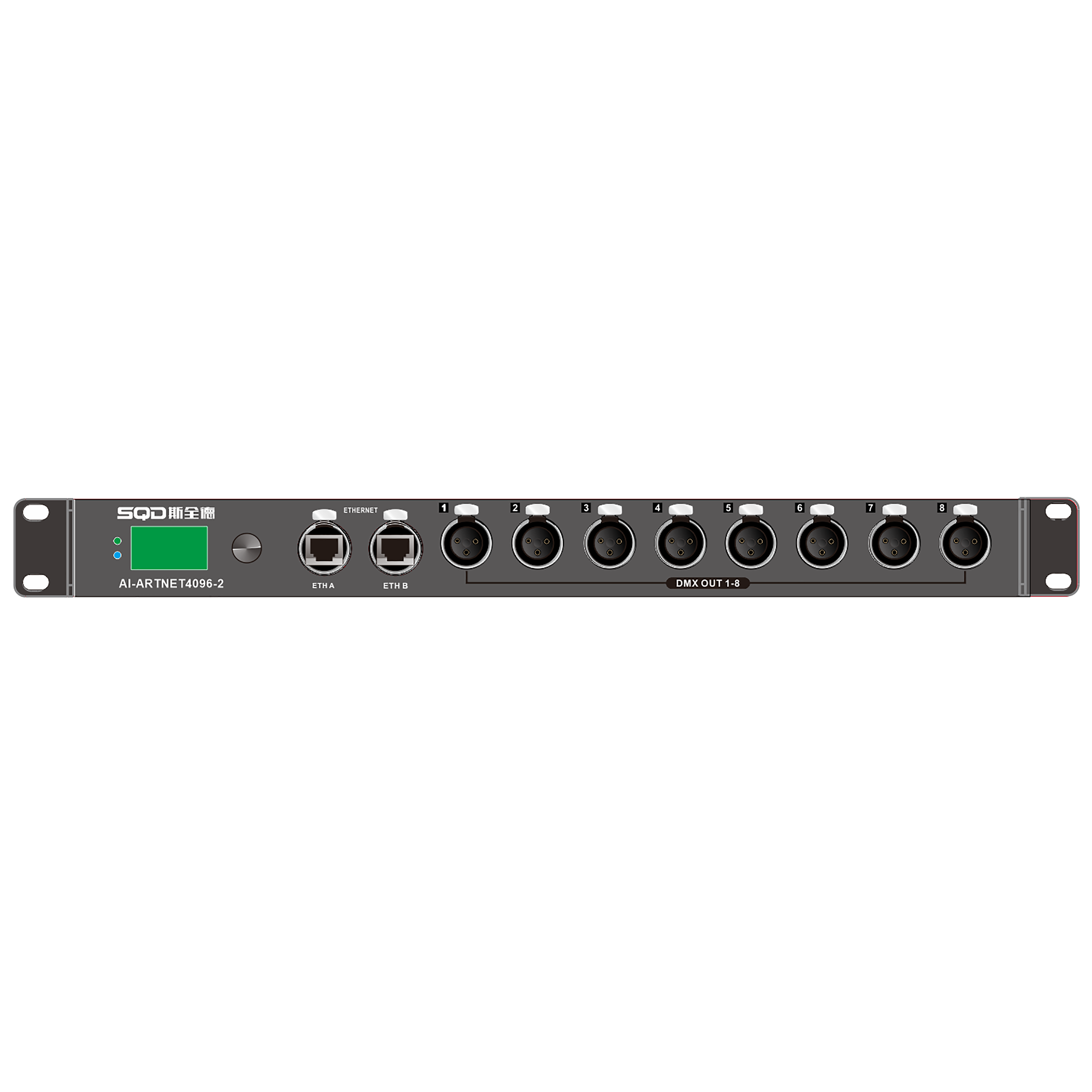

SN4096: 2 RJ45 network interfaces, 8 DMX input/output bidirectional interfaces
Both the input and output ports utilize optoelectronic isolation technology, and each DMX512 port can withstand a voltage of 2500V.

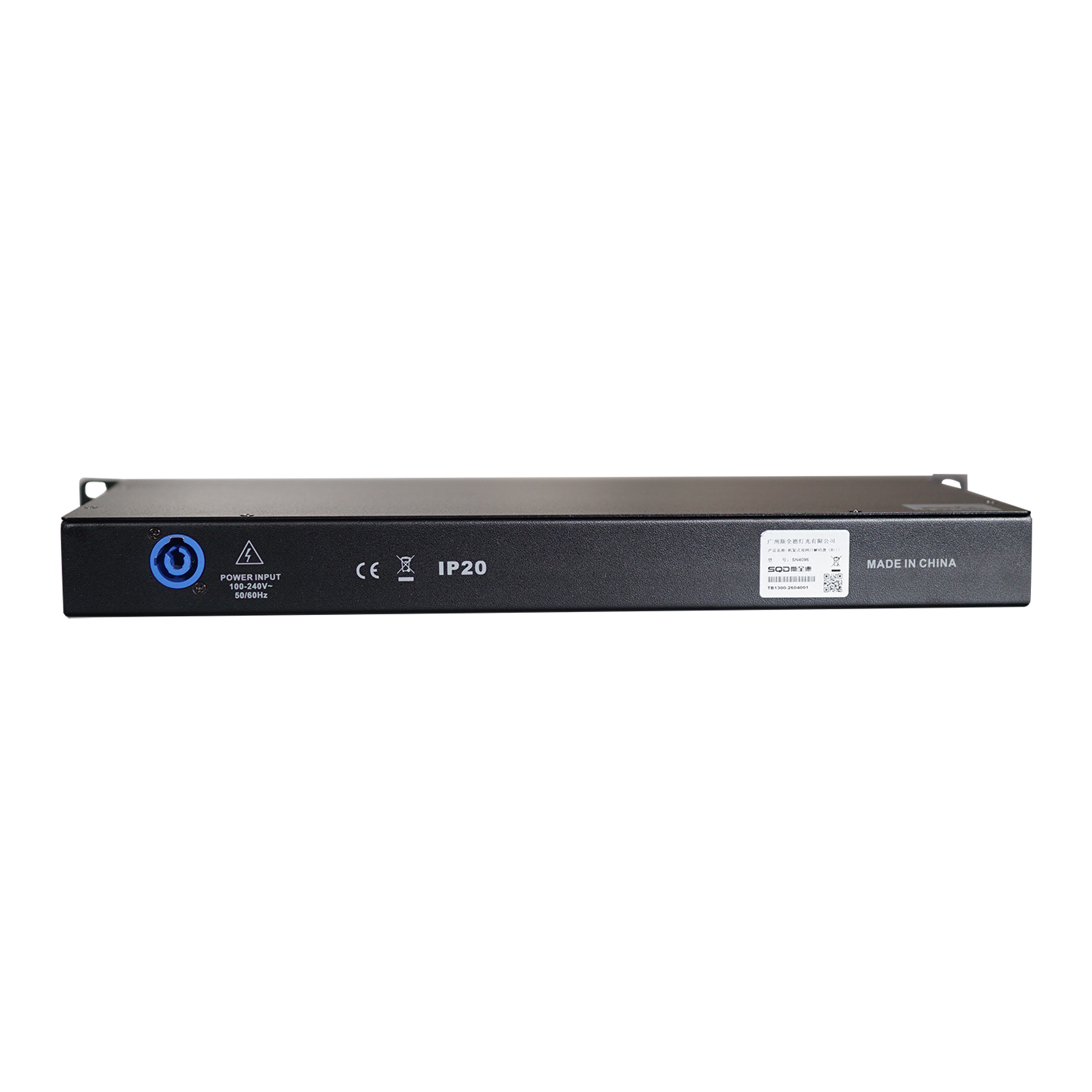

Protection rating: IP20
