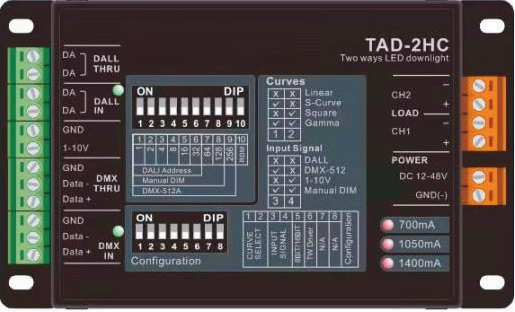

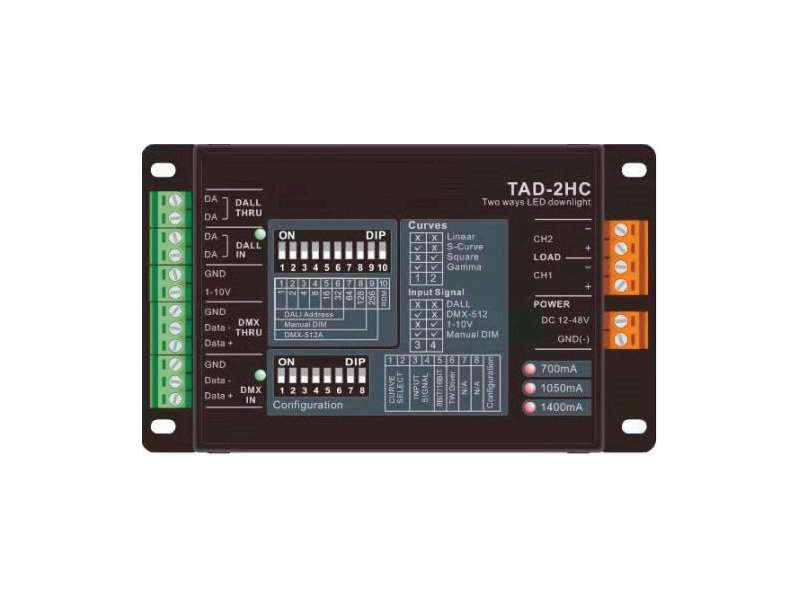

TAD-2HC is a compact driver box, specially design for driving all

common COB LED downlights of 20W to 50W within 12-48 V. It gives

you all the mood that traditional tungsten lamp created in the stall area

of an auditorium.

TAD-2HC accepts 4 type of input signals, DMX-512A (RDM), DALI,

1-10VDC and manual dim which offer your greatest comfor t in using it

with various control systems. Whatever input signals you selected to

use, there are 4 dimming curves, namely Linear, Square, S-Curve,

GAMMA curve(standard DALI curve) and 2 control mode, 8 bit or 16

bit, for your choice.

Being able to match with different input voltage and wattage of the

downlights, it can be set to work in 700mA, 1050mA and 1400mA

constant current output.

TAD-2HC is a dual channel driver. It can be used as 2 independent

channels to drive 2 downlights to save system cost or as dual channels

to drive Colordeve TAD Tuneable white downlight for applications

required colour temp matching.

Smooth dimming from 1-100% is achieved in TAD-2HC thanks to the

advance Pulse Density Modulation (PDM) methodology inside.
