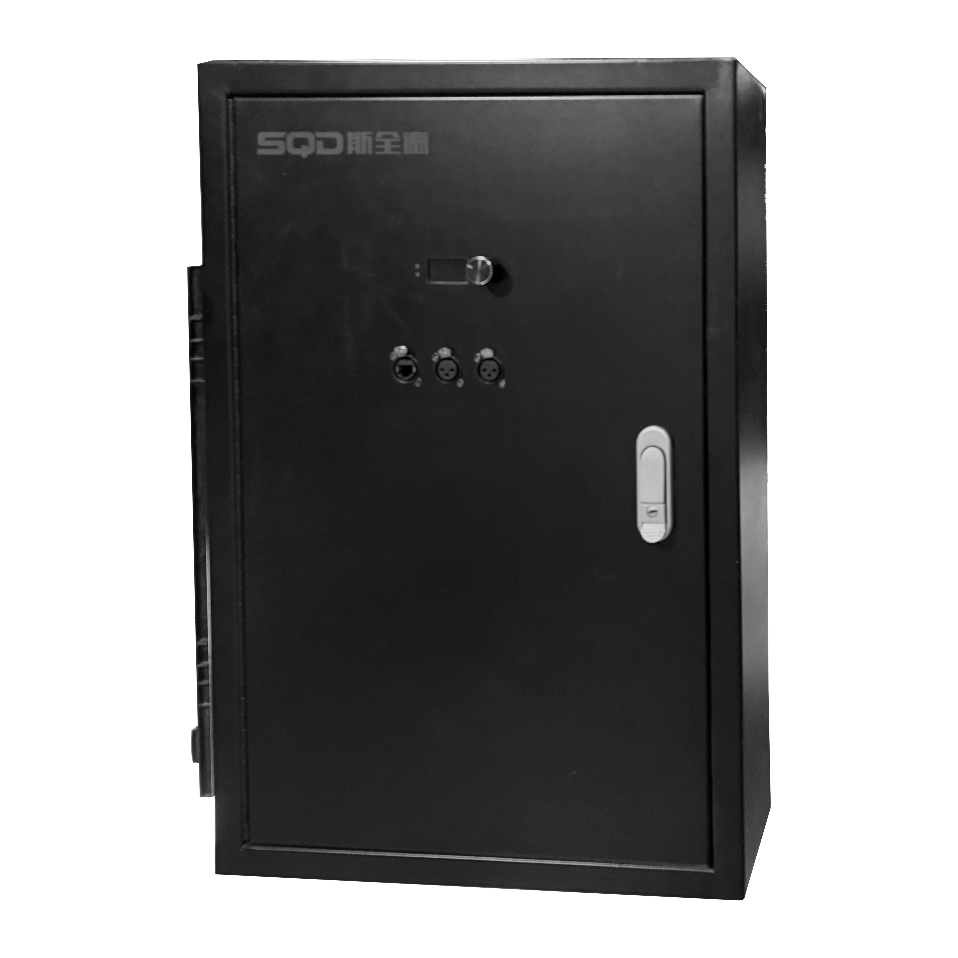

This product is designed specifically for the field of theatrical and film lighting, in line with the trend toward intelligent lighting control in this industry. It is compatible with the international DMX512 lighting control protocol as well as the TCP/IP communication standard, allowing for the monitoring and control of lighting supply circuits at a favorable cost. It enables remote monitoring and intelligent management of these supply circuits, meeting the professional requirements of theatrical lighting applications.
Technical specifications:
It supports the SQD visual monitoring system; in combination with the SQD visual lighting management platform, it enables functions such as automatic device detection, automatic creation of network topology diagrams, device management and configuration, as well as fault management. It allows for remote, real-time viewing of voltage, current, power levels, and port status for each channel.
It supports standard protocols such as Art-Net, sACN, SQD-Net, DMX512, and RDM. It also supports the TCP/IP protocol, along with dynamic or static IP address allocation via DHCP.
It features a built-in network converter that facilitates two-way conversion between Ethernet signals and DMX signals.
The device allows any number of DMX ports to be used to create a closed-loop backup connection, with the primary and backup ports functioning as backups to each other in real time.
It enables connection between the DMX ports of this device and those of other devices, thereby forming closed-loop backup connections where the primary and backup ports again serve as backups to each other.
It has fault diagnosis capabilities for DMX ports, including detection of signal loss, output short circuits, and conflict errors.
It is equipped with a color LCD display that provides real-time monitoring of voltage, current, and power levels for each channel; the menu options can be displayed in both Chinese and English.
It includes a built-in log management system, allowing all operation records to be viewed at any time on the SQD visual lighting management platform and exported with just one click, thus ensuring that system maintenance is well-documented and traceable.
It comes with 1 Ethernet port and 2 DMX/RDM ports.

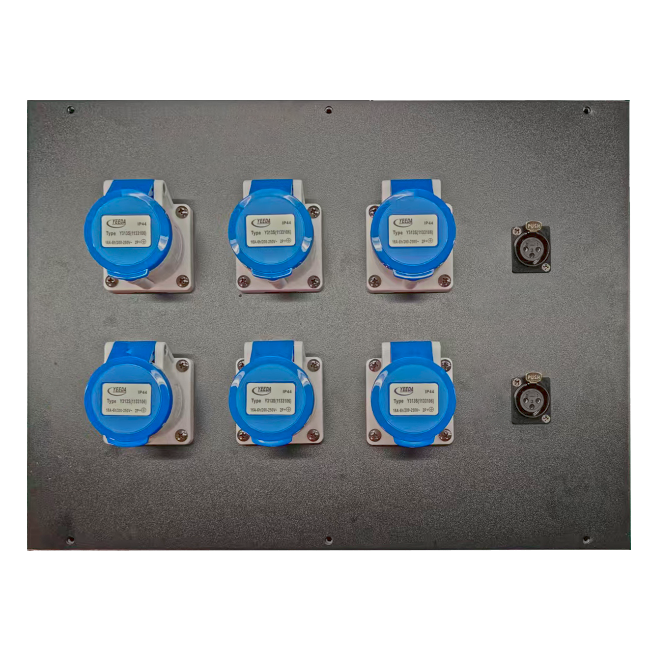

AI-POWER-4C: 4 channels × 3KW/6KW socket boxes/terminal boxes
AI-POWER-6C: 6 channels × 3KW/6KW socket boxes/terminal boxes
AI-POWER-12C: 12 channels × 3KW/6KW socket boxes/terminal boxes
Protection rating: IP20
