High performance COB curing module, high efficiency, more than 25000 hours of service life;International standard DMX512 control mode, PWM digital system dimming, good linearity, no jitter;Constant voltage and constant current drive, the relevant optical indicators remain stable, dimming process will not produce changes. It is suitable for all stages, TV stations and professional venues.

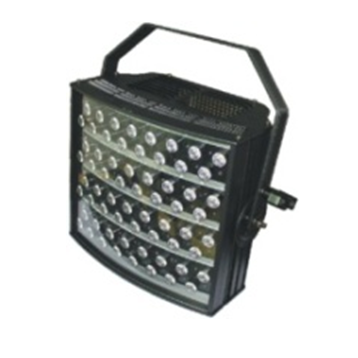

SQD-64FL LED Wash
Product Description:
High performance COB curing module, high efficiency, more than 25000 hours of service life;International standard DMX512 control mode, PWM digital system dimming, good linearity, no jitter;Constant voltage and constant current drive, the relevant optical indicators remain stable, dimming process will not produce changes.
It is suitable for all stages, TV stations and professional venues.
Technical Parameters:
Voltage: AC 110V 60 Hz /220V 50Hz
Light source: RGB three beads 24 *3W
Power: 300W
Beam Angle: 70 °
Control mode: DMX512
DMX channel: 7CH
Stroboscope: 0-20 Hz
Dimming range: 0-100% linear dimming
When it is 1.5 meters from the awning, the projection range is 3.5m wide ×3.0m high
Uniform light spot, good heat dissipation performance, long life of light source, super silent fan, low noise
The dimming range is continuously adjustable from 0 to 100%, and the color temperature remains the same when dimming
UV Zero Emission
DMX512 control, audio control or built-in program control
The arc design is adopted to enlarge the projection Angle
Net weight:8.0 kg
