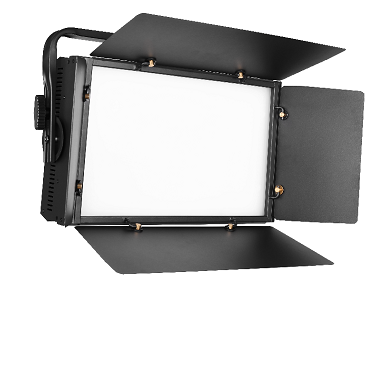

SQD-LW200W（2700-10000K）LED Panel

The light source USES 960 LED beads, high luminous efficiency, good heat dissipation, long life (100,000 hours), less light loss According to the structural characteristics of the product and the characteristics of light source heating specially designed customized heat dissipation aluminum and fan, good heat dissipation, low noise, product noise is not big 20db Unique structural design, shading leaf and soft light piece can be replaced at will 16bit dither free smooth linear dimming, dimming frequency of 20KHz High light quality, no ghosting, no glare, high reduction When multiple products work to different temperature synchronous dimming, color temperature and finger display remain the same

SQD-LW200W（2700-10000K）LED Panel
Product Description:
The light source USES 960 LED beads, high luminous efficiency, good heat dissipation, long life (100,000 hours), less light loss
According to the structural characteristics of the product and the characteristics of light source heating specially designed customized heat dissipation aluminum and fan, good heat dissipation, low noise, product noise is not big 20db
Unique structural design, shading leaf and soft light piece can be replaced at will
16bit dither free smooth linear dimming, dimming frequency of 20KHz
High light quality, no ghosting, no glare, high reduction
When multiple products work to different temperature synchronous dimming, color temperature and finger display remain the same
Technical Parameters:
- Input AC100~240V, 50~60Hz
- OUTPUT:200W
- Color temperature:2700K-10000Kadjusted
- CRI:≥ 95，R9≥ 95
- TLCI:≥ 93
- Control:DMX or manually
- Dimming: no jitter smooth linear dimming above 16 bits, dimming frequency above 20K
- Channels:2CHS,7CHS available
- Working temperature: 0℃ to 40℃
- 100,000 hours of LED lifetime
- Dimensions: 560L×146W ×358H (mm)with barn door,560L×107W×343H (mm)without barn door
- NET WEIGHT：9kg
