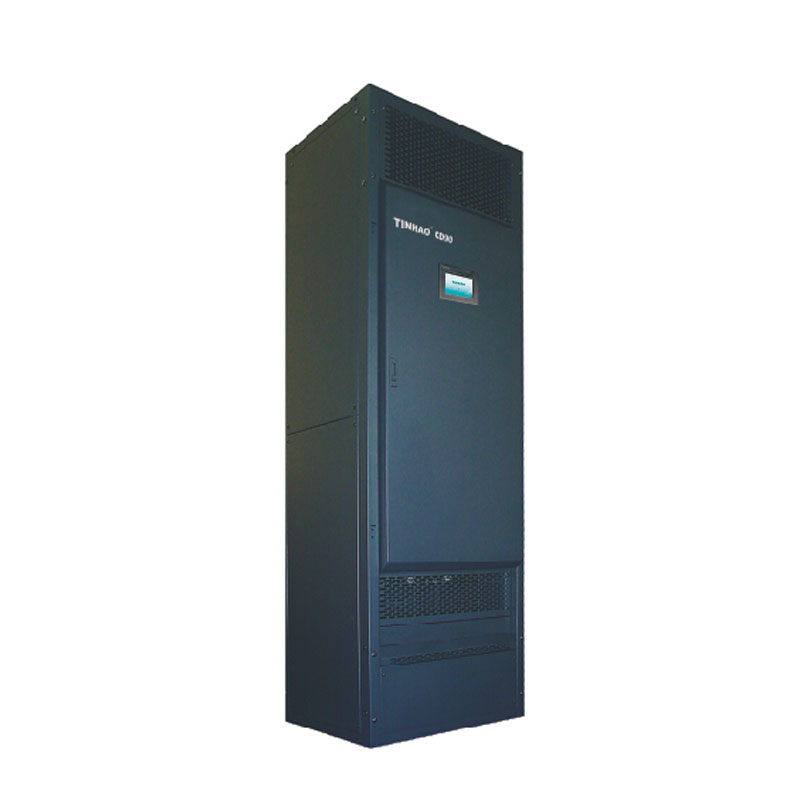

CD90 60CH/96CH Dimmer Rack

CD90 60CH/96CH Dimmer Rack

Product Features：

Maximum 48×2 module type dimming system

Separate processor for each module that allows hot swap

DMX and network signal simultaneous receivable, multiple console signals can be received

Dimming accuracy of up to 4096step

7-inch color touch screen with friendly interface

Error Indication lights for each module

Prestore multiple scenes in advance

Voltage automatic compensation function (when the input supply voltage changes between 200-240V, the output voltage remain constant)

Load testing capabilities to test the condition of the loads, such as: open, short, load recording function, can accurately test the actual power of each channel load

Keep last scene when signal breaks

Processor with fiber ports, Ethernet RJ45 port, TCP / IP protocol, ARTNET protocol and upgraded CAN protocol

Emergency button to turn on or off the whole rack

Multiple module choices available for different occasions

Unique patented green energy management technology to effectively reduce the full load of reactive power loss and reduce energy waste

Reporting optional, showing current, load, signals, operating temperature, overheat warning etc

Optional remote monitoring reports system

Built-in embedded Ethernet controller

Intelligent system adjust fan speed according to temperature automatically

Feedback function to monitor module working status

Live dimming function for emergency dimming

20+ dimming curve

Users are free to edit any dimming curve

Safe and intelligent electricity management function

Technical Parameters：

• Power supply:three-phase five-wire system (TN-S)

• Operating Voltage: AC 220V ± 10%, or AC 110V ± 10%

• Protocol: TINHAO-Net, ArtNet, DMX512 (optical isolation), ACN, RDM

• 24 hours of continuous work for dimmer module under 35 ℃ ambient temperature

• Input control: 1 optical fiber ports 1 Ethernet port and two DMX512 input ports (optical isolation)

• Software upgrading by memory card and Ethernet.

• Dimming range:0%~100%

• Humidity: 5 ~ 85%

• Output voltage: AC 0 ~ 220V

• Frequency range: 50Hz ~ 60Hz

• Minimum load: 0W

• Harmonic distortion: ≤0.5%

• Noise: ≤45dB

• Short-circuit protection: ≥200 times

• Rise time:200us/300us/400us

• Model available:60x3kw / 60x6kw /96x3kw /96x6kw

• Module available: Dimmer/ direct power/ relay power control

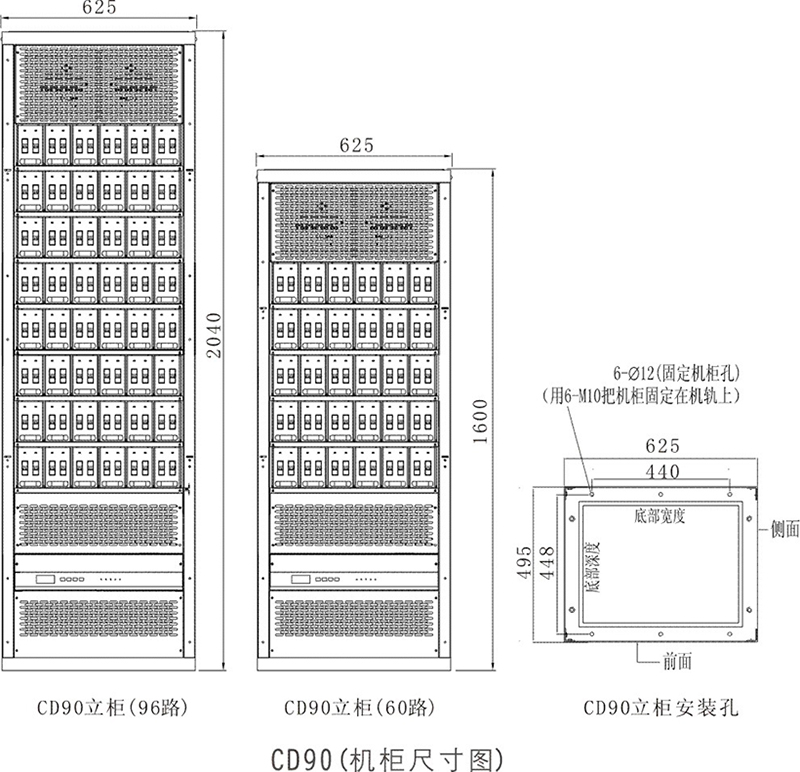

• Net Size:60CH  62.5×49.5×160cm

           96CH  62.5×49.5×204cm
