Wall mount design, easy for installing and maintenance; MCB protection for each channel; Dual DMX input; Electronic wiring, flexible setting of connection; Soft patch available 50 scenes recordable, manual or auto running; Keep the last level or auto-run the recorded scenes when signal breaks; LCD display for easy operation; Used with control panel to implement timing functions (optional); Built-in module,for access to central control for timing switch function (optional); Wireless infrared remote control and PIR switch; Support Interface Protocol of central equipments; RS485,RS-232 & DMX signal optional; Light weight and elegant outline;
Power supply: AC200-240V~ 50/60Hz
Output: 12CH×4KW, 24CH×4KW
Control signal: two internationally accepted protocol DMX512 input
Continuous working time: 24 hours
IP rating: IP33
Size: 410×155×821mm(12CH,L×W×H)
570×155×821mm(24CH,L×W×H)
Weight: 24.6kg, 37.5kg(24CH)
Serial number:

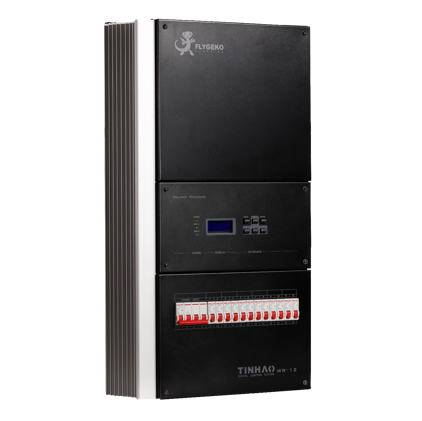

TB1419 WR-12 WALL RACK

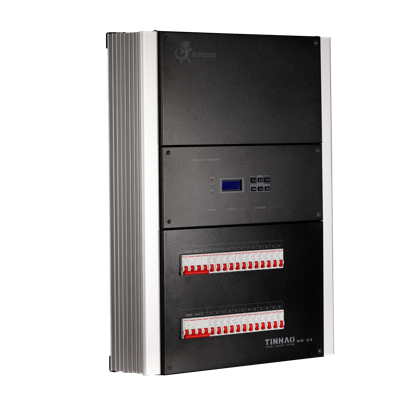

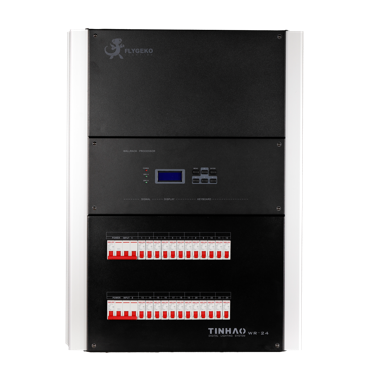

TB1420 WR-24 WALL RACK
