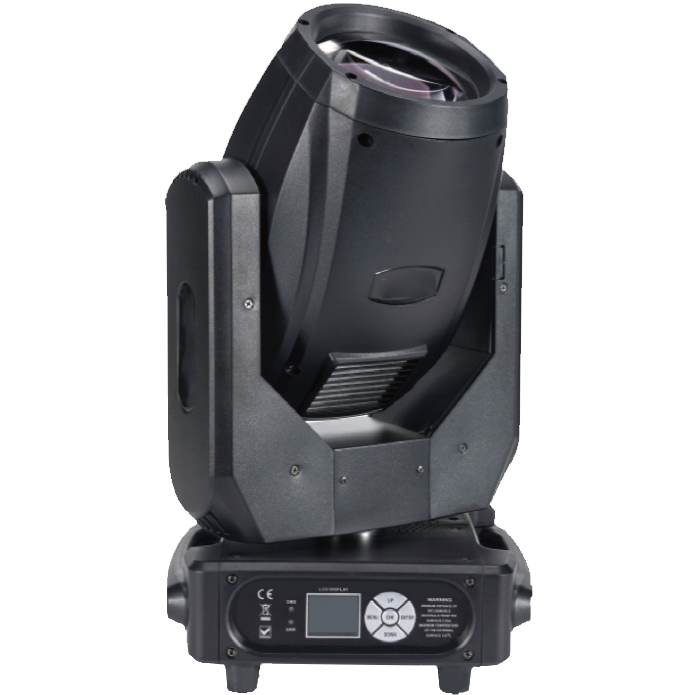

SQD-295B Beam

Power supply: AC100-240V~  50/60Hz

Power: 430W

Light source: OSRAM SIRIUS 295W

Light source life: 2000H

Color temperature: 8500K

Beam Angle: 2°

Color plate: 1 fixed color disk, 14 colors + white light, can achieve two-way color, rainbow, step, slide gradient, random color mode

Drawing Plate:  1 fixed pattern wheel, 9 fixed pattern +4 glass color picture +1 white light, can achieve two-way flow function

Colorful plate: 1 six-color color plate

Prism: 1 rotating 8 prism + [8+16] 24 prism, bidirectional rotation, superposition use

Atomizing disc: 1 atomizing disc

Focusing: electronic focusing

Control mode: DMX512, RDM

Control channel: 16/20 Dual-channel optional

Scanning range: horizontal 540°, 8/16Bit fine tuning; Vertical 270°, 8/16Bit fine tuning, with horizontal and vertical fine automatic error correction function

Dimming/stroboscopic: 0-100% mechanical dimming, 0.8-15 times/SEC stroboscopic, multi-stroboscopic mode selection

Beautiful dot matrix display, four touch switches, can reverse 180° display

Overheat protection

IP Rating: IP20

Size: 310×210×510mm

weight: 13kg
