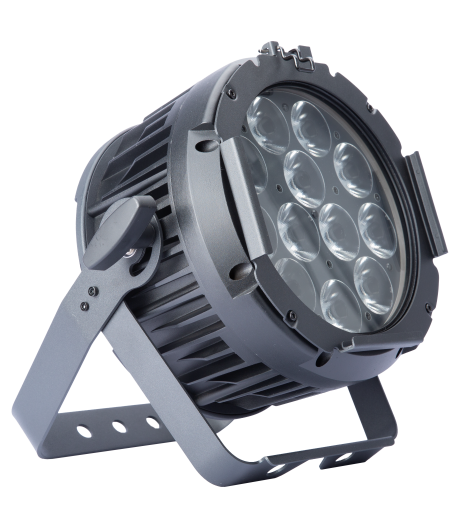

CD-RocketPAR RGBL

PRODUCT FEATURES:

• Red, Green, Blue, Lime LED Engines

• Standard beam angle of 6.5deg ACL beam (15°,25°，45° secondary lenses available）

• CCT control Green/Magenta adjustment

• Color temperature range: 1800K-10000K

• 100 to 240 VAC 50/60 Hz operation with PowerCON input and thru configuration

• Up to 30Hz Strobe rate

• DMX 5-pin in and thru

• Compatible with DMX-512A and RDM protocols

• On-board, simple to use userinterface- withkeypad lock-out security features

• Control mode setting of:

    -STD- 8/16bit，RGB Mode

    -CMY Mode，HSIC Mode

    -Studio Mode，Studio Color，Stage Mode

• Simple RGB 3 controls channels to calculated the color data information split to all 4 color engines

• Convection cool(No fan)

• Double yoke (floor stand)

• Color calibration and management system

• 4-dimming curves (linear, S-curve, Square, Gamma)

• Tech Identify feature to easily identify fixture location

• Built-in 132 color filters

• 8-inch color frame slot with locking tab

• Lightweight 4.65kg

• Color in Matt black(standard)

• IP20 rated (indoor use only)

SPECIFICATIONS:

Source

• Type: High intensity quad RGBL LEDs

• Wattage: 12×20W

• L70 rating: 50,000 hours

Optical Performance

• Output lumens: 4500lm

• Beam angle: 6.5°standard, secondary lens available 15°/25°/45°

• Accessories: 4-leaf Barndoor assembly

• TM-30-15: Rf=84，Rg=111

• TLCI: 80@5600K

• Lux: 2700lx@10m (6.5°)

• Aperture size: 200mm

• Camera flicker: 1.2KHz/4.8KHz and 25KHz (default)

Electrical

• Voltage range: 100V-240VAC, 50/60Hz

• Wattage: 200W

• Input method: PowerCON in and thru

• Inrush: 60A

• Current draw: 0.87A@230VAC

• Power through: Up to 15 units at 230VAC

Physical

• Materials: Aluminum Cast and hardware

• Body color: Matt black

• Mounting options: Dual function yoke (ground floor stand or handover)

• IP rating: IP20

• Weight: 4.65kg

• Included accesories: N/A

Color

• Color mixing: RGB, RGBL, HSIC, CMY

• CCT range: 1800K to 10000K

• Redish/Greenish: Red/Green +/- correction

• Filament resp: 750W/1KW/1.2KW/2KW/2.5KW

• Calibration system: Yes

• Special mood colors: Mood packs

• Digital color gels: 132 colors

Control

• Protocols: DMX-512A, RDM E1.20

• RDM configuration: Yes

• Interface: OLED display, four-buttons

• DMX control mode: STD-8/16bit, RGB Mode(default)/CMY Mode/ HSIC Mode/Studio Mode/Studio Color Mode/Stage Mode

• Input method: 5-pin XLR in and thru

Thermal

• Cooling method: Silent convection cooling

• Temperature compensation: Yes

• Thermal management: Safety protection against temperature excesses

• Ambient operating temperature: 0°C to 40°C

PHYSICAL DIMENSIONS

6.5°PHOTOMETRICS

Secondary Lens Information
