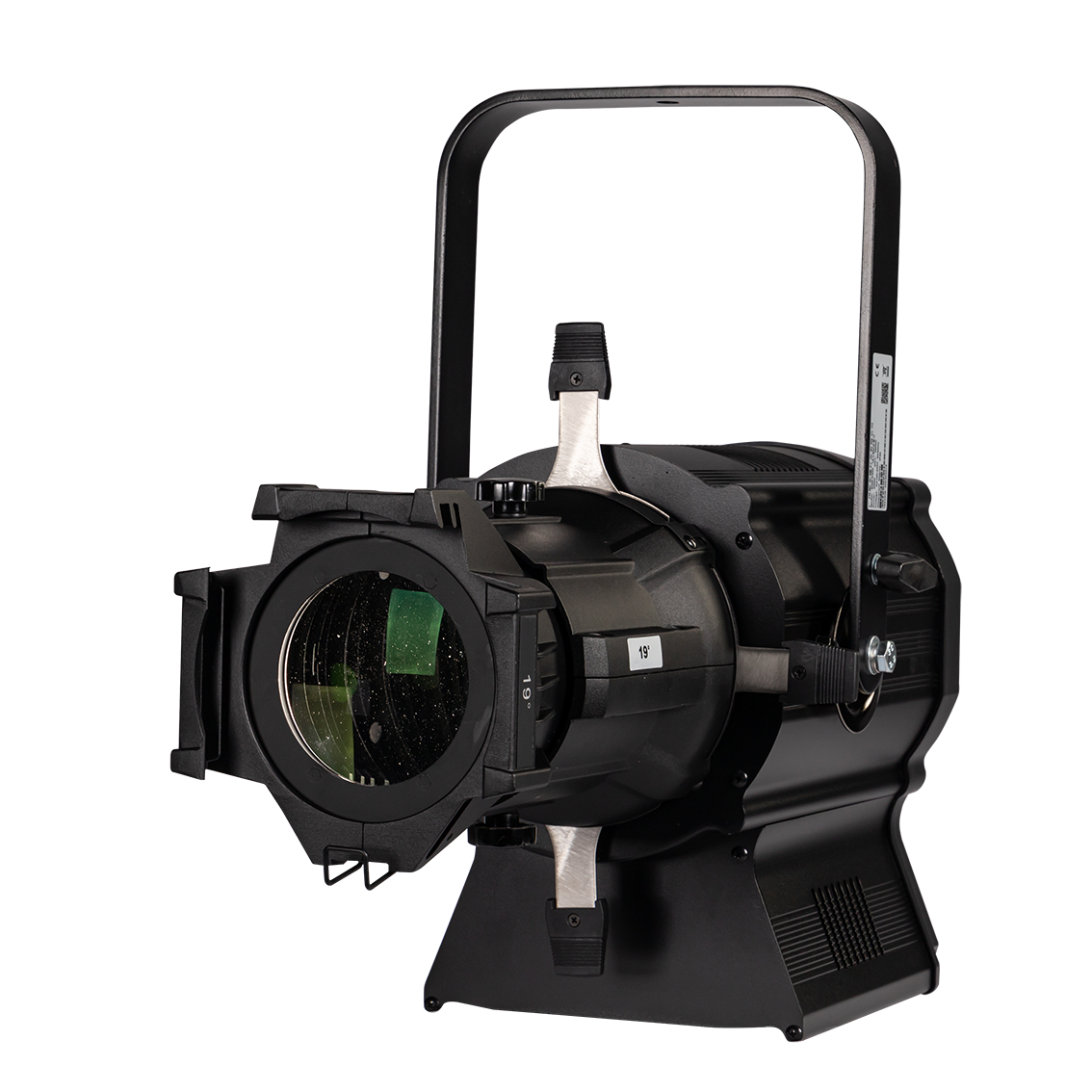

SQD-P200C-5° Color LED Profile

SQD-P200C-5°Color LED Profile

Product Description:

Imported LED light source, long life, high light efficiency

The heat dissipation of the light source is made of the radiator specially processed by pure aluminum, whose thermal conductivity is 2.5 times that of ordinary aluminum, and the ultra-quiet fan

The lamp body is made of aluminum alloy material, so that the installation and operation are light and convenient

Technical Parameters:

• Voltage: AC100-240V/50-60Hz

• Light source: LED light source module composed of 24 RGBW LED beads is adopted

• Power: 220W

• Light source life: ≥50,000 hours

• Color temperature: 2700-10000K adjustable

• Color rendering index: Ra≥93, TLCI ≥91

• luminous flux: 3050 lm

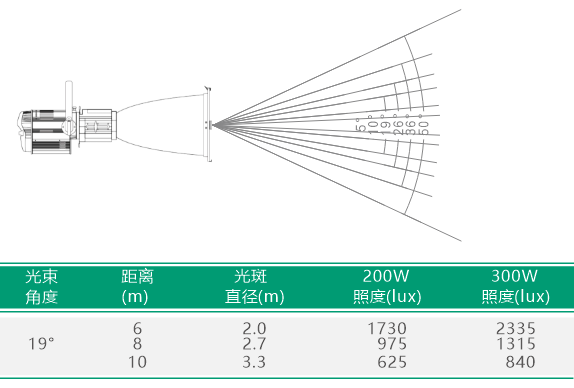

• Beam Angle: 5°

• 30*14mm LCD screen

• Control: DMX control or manual key control(RDM function optional)

• DMX channel: 2CH/7CH

• Dimming: over 16 bits without dithering smooth linear dimming, dimming without delay

• Refresh frequency: above 20KHz

• Coating fan: customized adjustable intelligent fan, fan speed (sound) can be adjusted according to the power dissipation,when the dimming value in the range of 0-99, the fan does not turn, no noise

• Power change color temperature error: ≤3%

• Temperature change color temperature error: ≤3%

• Working environment temperature: -25℃~40℃

• Protection class: IP20

• Material of lamp body: aluminum alloy

• Color: Black (other colors can be customized)

• Size: 114.5×41 ×42 cm

• Net weight: 13.3 kg
