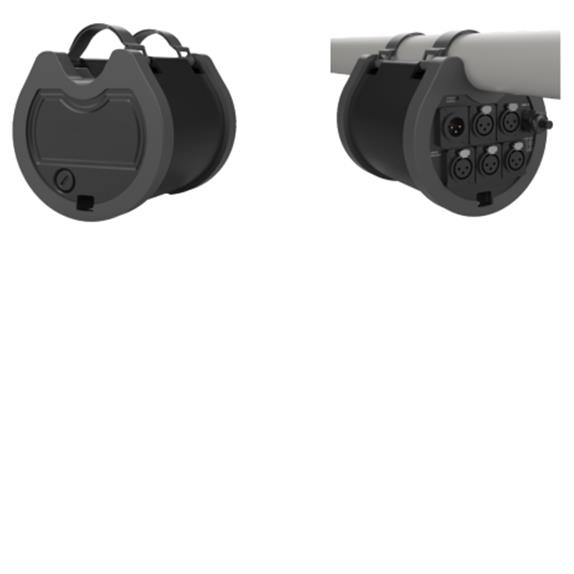

S4R RDM DMX Splitter

The two sides with crasy-resistant rubber edges can be mounted on a truss frame with pipe diameter of 40/50/60mm to augment DMX512 signals weakened by long distance transport. Equipped with IP65 protection level, both indoor and outdoor can operate normally and effectively buffer and amplify DMX signal, ensuring more accurate and reliable data transmission of DMX.

S4R RDM DMX Splitter
Product Description:
The two sides with crasy-resistant rubber edges can be mounted on a truss frame with pipe diameter of 40/50/60mm to augment DMX512 signals weakened by long distance transport.
Equipped with IP65 protection level, both indoor and outdoor can operate normally and effectively buffer and amplify DMX signal, ensuring more accurate and reliable data transmission of DMX.
Technical Parameters:
- 4-channel DMX signal amplifier (RDM)
- Rubber border bump design on both sides
- It can be installed on truss frame with pipe diameter of 40/50/60mm
- Two straps are standard to make it hang securely on the truss frame
- Protection level: IP65
- Adaptive power supply, input voltage range: AC 100~240V, 50/60hz
- Power: 5W
- DMX/RDM signal input/output: three - and five-core waterproof Canon head socket
- Size: 174×148×144 mm (width×depth×height)
- Net weight: 1.8 kg
- Working environment:
  Maximum ambient temperature tolerable: 40°C
  Maximum acceptable surface temperature: 65°C
  Minimum acceptable operating temperature: 0°C
