ST100--1CH hanging sine wave dimmer

Performance characteristics:

·PWM (Pulse Width Modulation) pulse width modulation control technology.

·Insulated Gate Bipolar Transistor (IGBT)

·No harm of harmonics, low loss, high power factor and high efficiency.

·No voltage waveform distortion, good quality, no interference with other instruments and equipment.

·The output harmonic component can be almost ignored, no special grid harmonic control is needed.

·Sine wave dimming effectively eliminates filament noise, especially suitable for use in quiet places.

·Save the area of stage dimming cabinet, simplify the setting of stage lighting power supply.

·Save pipelines from the fixed dimming cabinet room to the stage performance area.

·Can use distorted grid electricity and generator power generation and DC inverter power supply.

·Reduce the problem of idle fixed dimmers in theaters.

·Reduce the problem of uniform distribution of theater dimming circuits.

·Easy to transport, flexible and fast installation.

·Improve the space covered by stage lighting.

·Improve the function replacement of stage scene rod.

·Provide technical possibilities for the stage lighting to illuminate the space freely.

·The rated load can work continuously for not less than 24 hours at an ambient temperature of 35 degrees.

·With output short-circuit/overload high-speed intelligent protection function.

·The input can be converted into a fixed value low voltage output, such as 36v/48v/55v/80v/115v, etc.

·Low-voltage dimming control function with fixed output, 0V～(set value voltage).

·Convenient installation of lamps and dimmers without additional equipment.

· Working mode can be set to dimming/through.

·International general protocol DMX512 signal input.

·Simple and intuitive operation, easy to maintain.

·No fan design, natural airflow cooling.

·Single lamp, single control, high degree of intelligence.

·The starting address can be set arbitrarily (1～512).

·Full digital trigger, no need to adjust related parameters during use.

· Stable dimming performance, good consistency, independent control operation.

·The report system can be constructed through the web server, which is intuitive and convenient.

technical parameter

·Working voltage: 110V～220V±10% AC

·Output voltage: OV～220V Ac (factory setting value)

·Power supply: single phase

·Frequency range: 45Hz～65Hz

·Rated power: 2kW /220V

·Whole power consumption: 2～3W

·Minimum load: 0 W

·Harmonic distortion: ≤0.5%

·Current rise time:> 1mS

·Response time: ≤40mS

·Noise: ≤25dB

·Short circuit protection: electronic protection

·Dimming accuracy: ≥4000

·Power factor: 0.95～0.99

·Insulation resistance: 2MΩ

·Electric strength: ≥1500V

·Ambient temperature: -10℃～45℃

·Ambient humidity: 5%-85%

· Full load temperature rise:<70℃

·Voltage adjustment range: 1～220V AC

·Address selection: 1～512

·Control signal: DMX512-1990

·Communication protocol: TINHAO-Net, DMX512

·Output circuit: 1CH

·Cooling method: no fan, solid conduction natural air cooling

·Working time: continuous 24h

·Connectable load: resistive, inductive

·Built-in dimming curve

·Power semiconductor device: IGBT

·Wiring input: 2.5mmX3 multi-strand copper core rubber cable

·Wiring output: 2.5mmX3 multi-strand copper core rubber cable

·Weight: 4kg

·Dimensions: 510 x 235x 110 mm

·The product has passed the following national standard tests:

 "GB 17625.1-2003 electromagnetic compatibility limit harmonic current emission limit" qualified

 Qualified "GB 17743-2007 Limits and Measurement Methods of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment"

·The product has passed the following European EMC standard tests:

 Passed "EN 55103-1:2009"

 Passed "EN 55103-2:2009"

 Passed "EN 61000-3-2:2006﹢A1﹢A2:2009"

 Passed "EN 61000-3-3:2008"

 Passed "EN 61347-2-11:2001"

 Passed "EN 61347-1:2008"

·The equipment complies with national standards, European standards and carries the CE certification mark.

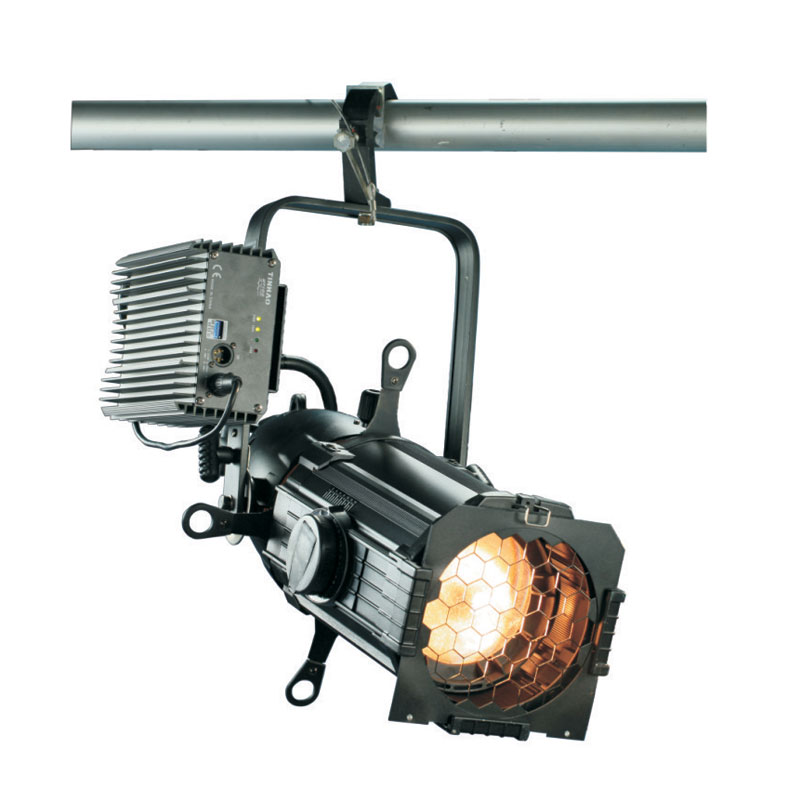

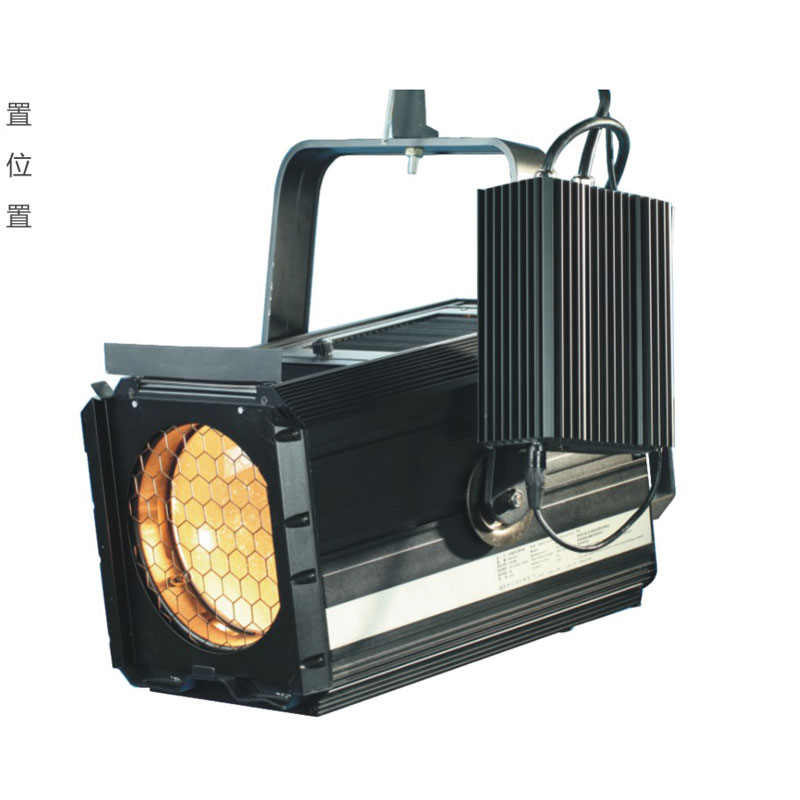

　　ST100-1CH full digital IGBT sine wave electronic dimmer, independent hoisting, light and flexible, all-round realization of free combination of stage lamps. It is used in the wider mobile lighting fields such as stage, TV station, performing arts venue, architectural lighting and so on.

    ST100 restricts the generation of higher-order harmonics from the working principle, and is especially suitable for occasions with strict requirements on noise. For this specific product positioning, professional-quality distributed dimming "single-channel sine wave electronic dimmer" was developed. It can be installed in any place where dimming is needed, and can be integrated with conventional stage lamps. Its function is similar to that of lamps with dimmers. It can save the junction box and load to the fixed dimmer room cables and trunking, improve the dimming The flexibility of using optical circuits, while reducing the configuration of idle dimming circuits, saving costs.

Factory number: TB8080

Product packaging size: 37 X 30X 17cm

Product size: 28 X 17 X 11cm
