Working voltage: 200V-240V; Working frequency: 50Hz-60Hz; Fade accuracy: 16bit(4096steps) ; Minimum power consumption: 8W; Output circuit: 1 way × 3KW; Control signal: international general protocol DMX512 input; Dimming range: 0~100%; Electric strength: ≥2500/1min; Response time: 23ms

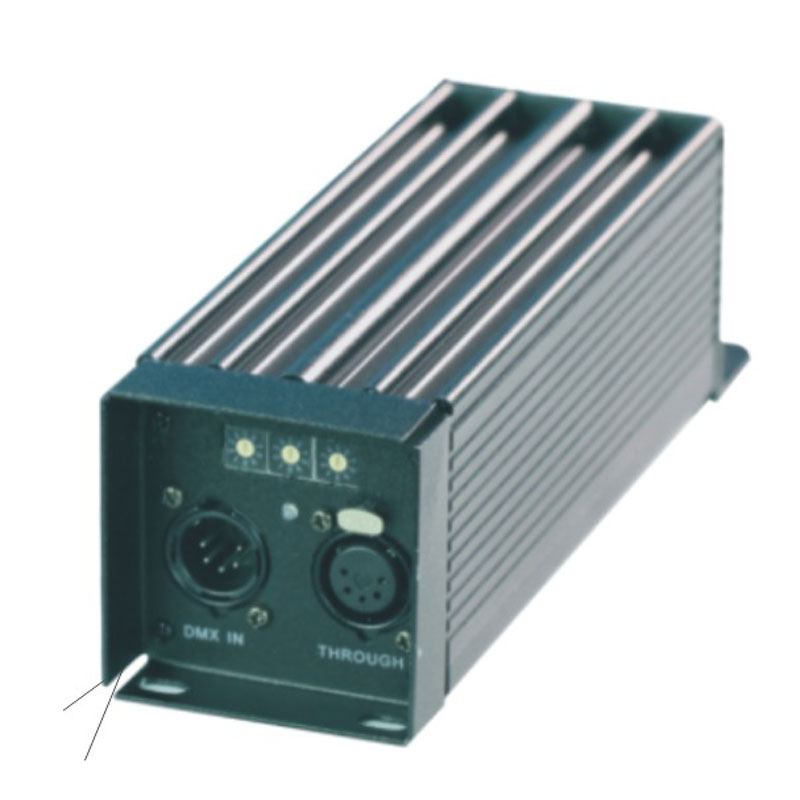

D1-1 Hanging Dimmer
Technical Parameters:

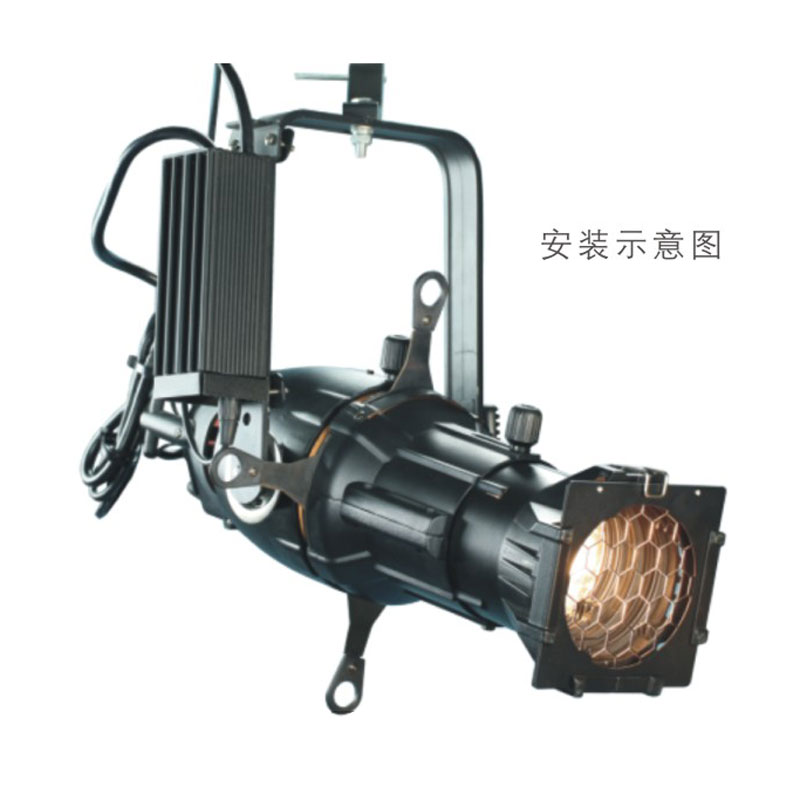

The D1-1 dimmer it designed can be fixed on the handle of a dimmable luminaire, such a profile etc
Voltage: 200V-240V ,50Hz-60Hz
Fade accuracy: 16bit(4096steps)
Auto Voltage Compensation: Effective when input at 10% variation
Power Consumption:8W
Output: 1×3Kw
Signal: DMX512 (USITT 1990)
Dimming range: 0-100%
Response time: 23ms
Operating: 24 hours daily
IP Rating: IP 33
Dimensions:235×71×70mm（L×W×H）
Weight: 1.5kg
