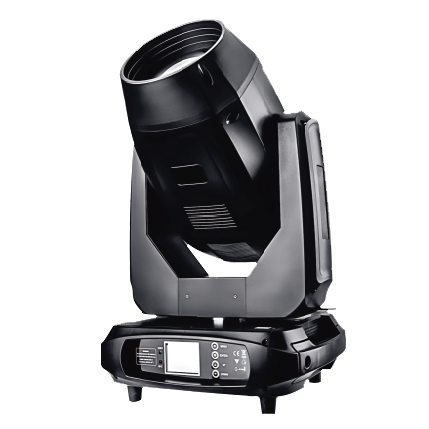

SQD-470B Beam

Power supply: AC100-240V~  50/60 Hz

Light source: OSRAM 461W 21R bulb

Beam Angle: 1.8°

Color plate:  14 colors + white light

Drawing Plate: 1 fixed pattern plate, 12 patterns + white light

Prism: 16 prism, double-layer 16+32 prism, bidirectional rotation, prism can be stacked with each other, with index positioning function

Atomization: Linear atomization

Focusing: Electronic focusing

Control mode: DMX512,RDM, Artnet(optional), self-propelled, master-slave, voice control, built-in

Control channel: 16/19 CH

Dimming: 0-100% linear dimming

Stroboscopic: random stroboscopic, pulse stroboscopic, 1-20 times/second

Display screen: LCD touch screen

Scanning range: horizontal 540°, vertical 270°, automatic return correction function

Size: 645×400×320mm

Weight: 21KG
